How to Choose Cover Glass for Industrial HMI: In-Depth Analysis of Strengthening Methods, Thickness, and Sensitivity

Selecting cover glass for industrial HMI is essentially about balancing impact resistance with touch sensitivity.

Many customers arrive with consumer-electronics specs and wonder why the same solution cannot be applied. Others try to save money by accepting a supplier’s standard thickness, only to discover insufficient sensitivity and end up redesigning the entire assembly.

This article gives you a complete selection logic→start from the real damage factors in industrial settings, understand the fundamental differences among three strengthening methods, grasp the physical limits that glass thickness imposes on capacitive touch performance, and finish with a practical decision guide.

Industrial Environment: Five Key Damage Factors for Cover Glass

Five key damage factors on the shop floor

• Mechanical impact

  Tools dropped, carts colliding, operators pressing hard with thick gloves. Impact energy ranges from 2 J (IK07) to 20 J (IK10). The glass must absorb this energy instantly without breaking.

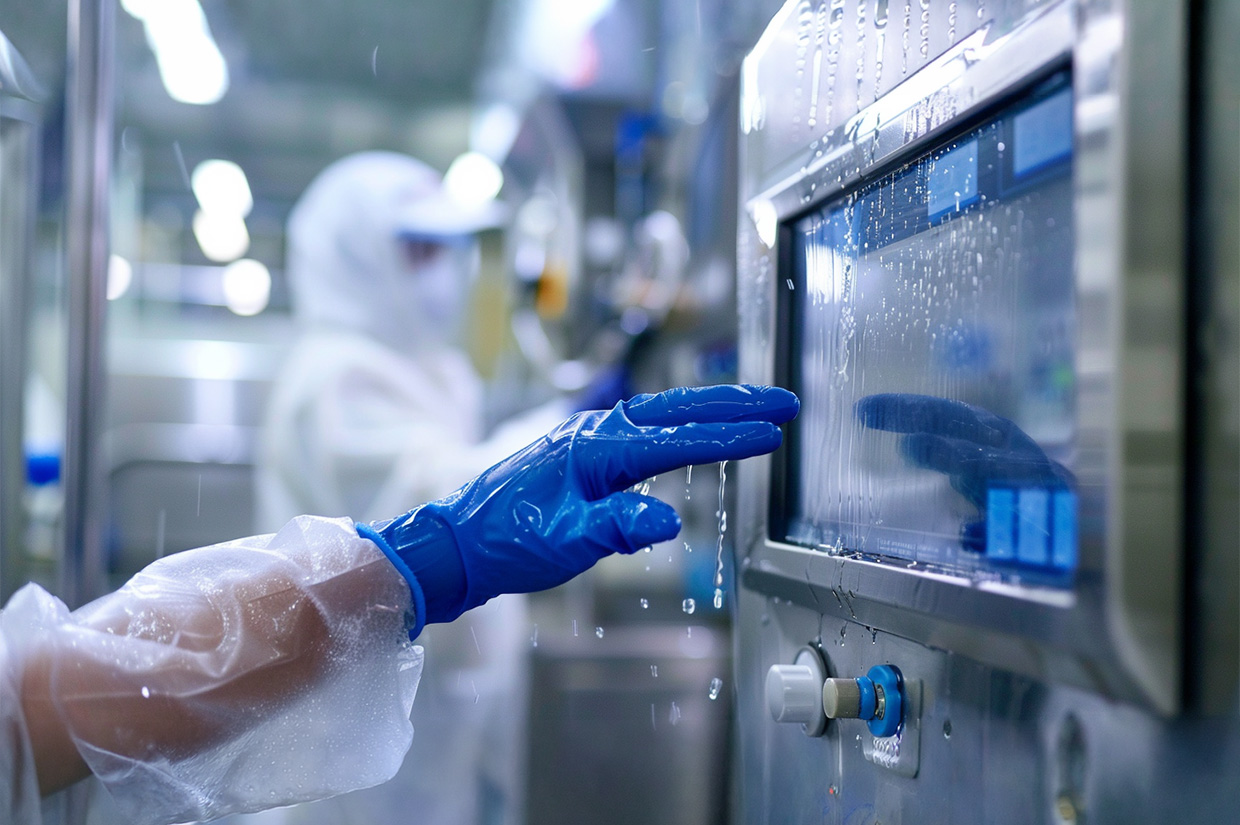

• Chemical attack

  Cleaners, disinfecting alcohol, industrial solvents, oils. Medical devices may be wiped with 75 % alcohol more than ten times a day; food-industry alkaline cleaners can reach pH 12.

• Temperature cycling

  Outdoor equipment experiences –30 °C to +70 °C swings that generate internal thermal stress and eventually stress cracks.

• Vibration fatigue

  Construction machinery endures 5–20 Hz low-frequency vibration; micro-cracks slowly propagate until sudden failure.

• Human-induced scratches

  Keys, screwdrivers, metal tools. Surface hardness below 6H will show visible scratches within six months in typical industrial use.

Impact Rating (IK) versus Touch Sensitivity Trade-off

IEC 62262 defines IK ratings. To pass IK08 (5 J), glass thickness is usually 2.0 mm or more; IK10 (20 J) typically requires 3.0 mm or thicker.

However, PCAP capacitance change (ΔC) is inversely proportional to glass thickness (d). Increasing thickness from 1.1 mm to 3.0 mm reduces touch sensitivity by 60–70 %, and light finger touches may register nothing.

Industrial HMI versus Consumer Electronics – Cover Glass Requirements

Customers often ask why they cannot use Gorilla Glass or 0.7 mm thin glass. The answer lies in fundamentally different design priorities.

Consumer glass prioritizes thinness, appearance and cost. Industrial HMI prioritizes durability, reliability and regulatory compliance. Gorilla Glass offers CS values above 800 MPa, but its fracture pattern produces sharp fragments—unacceptable in food plants. 0.7 mm thin glass feels excellent but develops fatigue cracks under vibration within months.

Glass Strengthening Methods

• Chemically Strengthened Glass(Chemically Strengthened)

 🔬 Ion-exchange mechanism

Glass is immersed in ~400°C molten KNO₃. Na⁺ ions on the glass surface are replaced by larger K⁺ ions. Because the K⁺ ionic radius (≈ 0.138 nm) is about 35% larger than Na⁺ (≈ 0.102 nm), the surface lattice expands, creating a compressive stress layer (Compressive Stress Layer) that significantly improves strength and impact resistance.

🏷️ Representative brands

Corning Gorilla Glass、AGC Dragontrail

⚠️ Manufacturing constraints

Cannot be cut after strengthening; dimensions and holes must be finalized during the design stage.

• Thermally Tempered Glass(Thermally Tempered)

Heated to 650°C and then rapidly cooled, creating surface compressive stress. CS is about 100 ~ 200 MPa, lower than chemically strengthened glass.

Fracture pattern — blunt small particles (5 ~ 10 mm), with edge dulling; a safety-glass characteristic.

Thickness limit — ≥ 3.0 mm. If too thin, an effective temperature gradient cannot form, and the glass may warp.

• Laminated Glass(Laminated Glass)

A “glass + PVB/EVA interlayer + glass” sandwich structure. When broken, fragments remain bonded to the interlayer and do not scatter. Ideal for food and medical applications with zero tolerance for flying fragments. Cost is about 1.5 ~ 2× that of chemically strengthened glass.

Comparison of Strengthening Methods

Higgstec G/F/G Product – Adding Thin Glass to Resistive Touch Panels

Purpose and Principle

Standard F/G resistive panels use PET film as the top layer, with only 2H ~ 3H surface hardness, making them easy to scratch. G/F/G bonds a 0.2 mm thin glass layer onto the PET surface, raising hardness to 6H or above and enabling AR/AS/AG treatments.

Common glass thickness and its impact on actuation force

Resistive touch requires the PET layer to bend downward so the upper and lower ITO layers make contact.

• Standard F/G — Actuation force 50 ~ 100g

• G/F/G (0.2 mm glass) — Actuation force 150 ~ 200g

Glass Young’s modulus (70 GPa) is far higher than PET (3 GPa), so more force is required to create deformation.

Actuation force F∝ t3, when thickness increases from 0.2 mm to 0.4 mm, actuation force rises by about 8×. 0.2 mm is the best balance between scratch resistance and actuation force.

G/F/G vs. F/G Structure Comparison

Recommended application scenarios for G/F/G

✔ Suitable

Slaughterhouses, oil-tanker control consoles, mining equipment, outdoor construction machinery. Needs scratch resistance while still requiring glove/heavy-glove operation, with frequent cleaning using chemical agents.

✘ Not recommended

Precision operations requiring extremely low actuation force (< 100g), severely constrained budgets, or bare-finger indoor environments.

FAQ – Cover Glass Selection for Industrial HMI

1. What is the biggest difference between chemically and thermally strengthened glass?

Core differences are CS value and fracture pattern. Chemically strengthened glass offers 700 ~ 900 MPa CS and 7H ~ 9H hardness but produces long sharp shards.

Thermally tempered glass has only 100 ~ 200 MPa CS yet breaks into blunt particles that meet safety-glass regulations. Food and medical applications that prohibit flying fragments must use thermally tempered or laminated glass, even if overall strength is lower.

2. When should you abandon PCAP and choose resistive touch?

Three situations

1. Glass thickness ≥ 4.0 mm, where PCAP sensitivity becomes insufficient for real-world use
2. Operators must wear thick gloves (> 1.5 mm), such as leather or rubber gloves
3. Conductive liquids such as oil or water are present, which can cause false touches on PCAP. Resistive touch is not limited by glass thickness, supports any glove type, is immune to conductive-liquid interference, and allows actuation force adjustment from 50 ~ 300g to suit different scenarios.

3. Does the 0.2 mm glass in G/F/G affect touch sensitivity?

G/F/G is a resistive TP. Its actuation principle is physical contact, not capacitive sensing, so glass thickness does not affect sensitivity. However, the 0.2 mm glass increases actuation force: standard F/G requires 50 ~ 100g, while adding 0.2 mm glass raises it to 150 ~ 200g. This is fully acceptable for gloved operation, while improving surface hardness from 2H ~ 3H to 6H ~ 7H to resist tool scratches.

4. How do I decide which strengthening method my application needs?

Start with three questions

1. Can fragments fly after breakage? If not (food/medical), choose laminated or thermally tempered glass directly
2. What IK rating is required? IK07 and below → chemically strengthened; IK08 and above → thermally tempered or laminated
3. How do you balance budget and service life? Chemically strengthened costs more but offers the best performance; thermally tempered costs less but has lower CS; laminated is the most expensive but the safest. Do not judge by a single parameter—evaluate the real usage scenario and risk tolerance.
