Quick Answer
A touch display interface for medical equipment should not be selected on size, resolution, or initial brightness alone. Start by defining intended use, actual light sources, glove and cleaning conditions, system-level EMI and grounding, and production and service requirements. Then verify that the display, touch sensor, cover glass, optical bonding, and mechanical structure can operate reliably as one system.
- Differentiate an operational HMI from a diagnostic imaging display
- Validate touch performance with actual gloves and cleaning conditions
- Confirm production consistency and TCO at the system level
When developing medical equipment, R&D, systems engineering, and product teams face a central challenge: how do you select a touch display interface that meets clinical requirements while remaining stable, reliable, and manufacturable at scale?
This decision directly affects clinical workflow efficiency, information readability, equipment reliability, and long-term service cost. Selecting a display solely because it offers higher brightness or resolution on a datasheet is not enough to address the integration requirements of real medical environments.
This article provides a planning framework for medical device OEM R&D, systems engineering, and product teams. It examines system integration, actual operating conditions, reliability validation, and total cost of ownership (TCO) to explain how to plan an HMI that balances visibility, usability, production consistency, and long-term stability.
Touch Display Modules for Medical Equipment: Define Display and Operating Requirements by Intended Use
A touch display interface for medical equipment should not be selected on size, resolution, or initial brightness alone. The factors that determine integration success are the device's intended use, operating environment, workflow, and long-term service conditions.
Patient monitors, ultrasound systems, laboratory analyzers, therapy devices, and mobile medical carts may all use touch displays, yet their requirements for visibility, touch operation, cleaning resistance, structural strength, and system integration differ. At the start of development, OEM teams should define the following requirements before selecting an appropriate touch display module architecture.
- Intended useIs the screen used for workflow operation, parameter setting, patient information display, or diagnostic image interpretation?
- Operating environmentCould ambient light, surgical lighting, daylight from nearby windows, or viewing angle affect screen contrast and information readability?
- Operating conditionsWill users wear latex, nitrile, or other medical gloves? Are moisture, cleaning-agent residue, or edge-of-screen operation expected?
- System constraintsHave installation space, mechanical tolerances, grounding, power noise, and nearby electronic components been included in the design?
Start by distinguishing the operating interface from a diagnostic imaging display
Most medical equipment displays are used for device control, parameter setting, patient information, or workflow operation. For this type of HMI, the priority is clear information recognition, accurate touch response, a cleanable surface, and stable operation within the complete device.

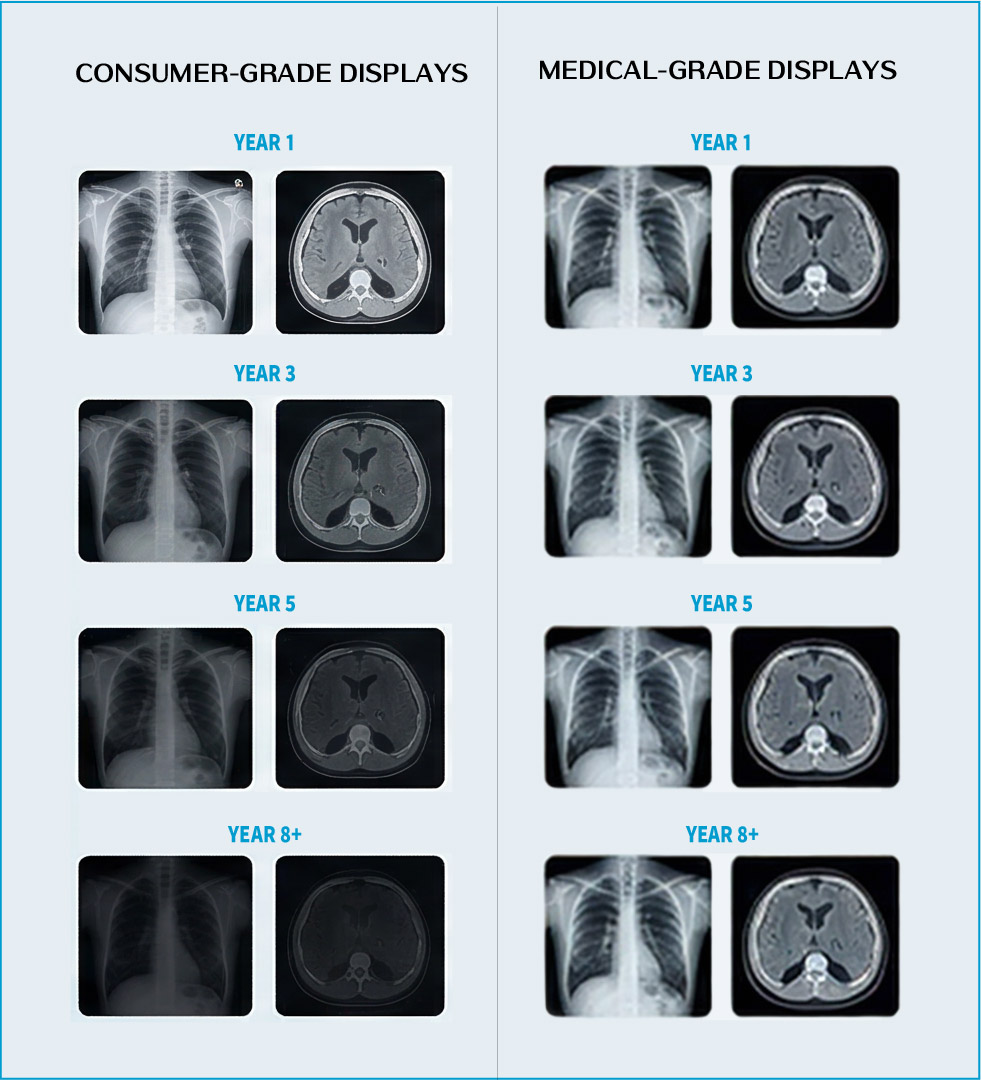

If the display is intended for medical image diagnosis or interpretation, grayscale performance, luminance, uniformity, and luminance stability must be assessed separately. The validation approach should be planned according to the product's intended use and target market. Diagnostic imaging displays and general equipment HMIs cannot be evaluated using the same specifications or validation logic.
Visibility depends on more than brightness; evaluate actual light sources

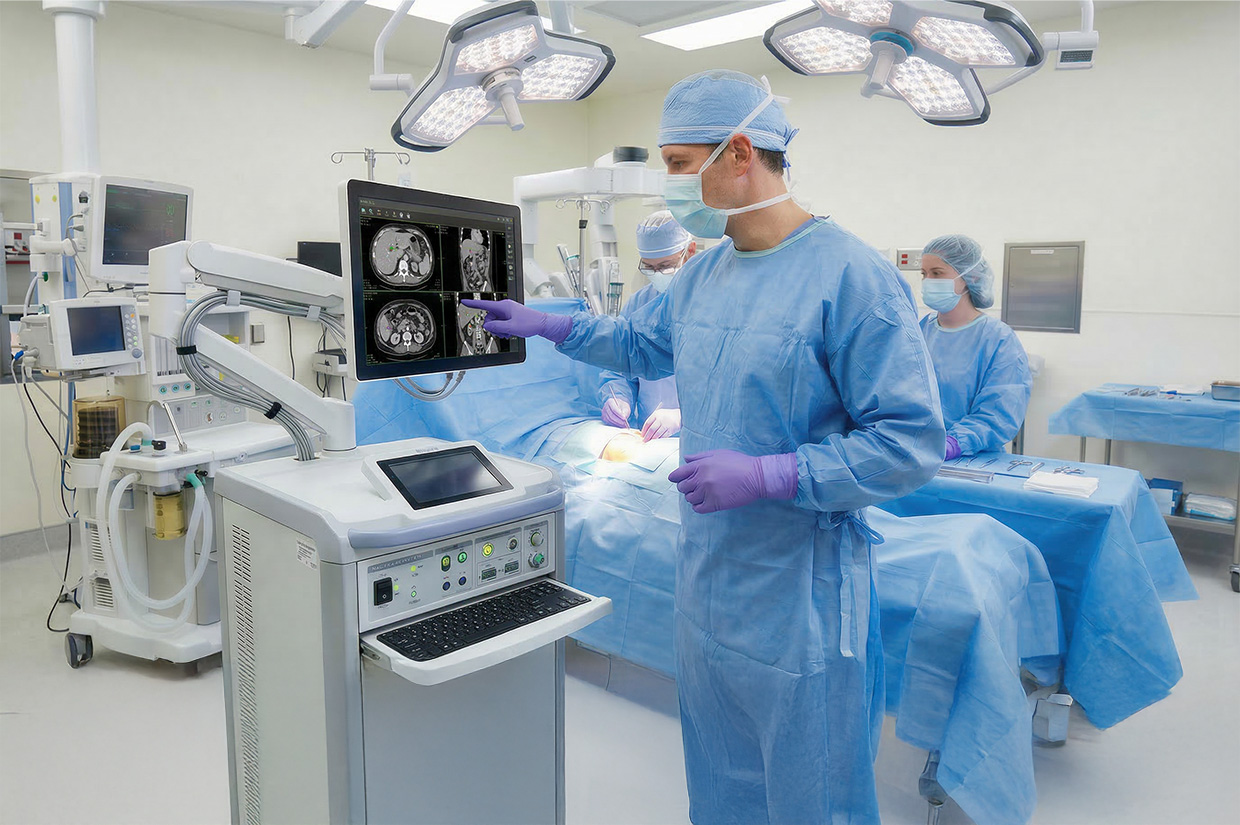

Medical equipment may be used in wards, laboratories, emergency departments, operating rooms, or mobile-care settings. Ambient light, surgical lights, daylight from nearby windows, and viewing angle can all affect screen contrast and information readability.
In addition to brightness specifications, evaluate cover-glass reflections, glare, contrast changes at different viewing angles, and whether surface treatments affect the clarity of text, icons, and images. For equipment viewed for extended periods, luminance retention and display consistency should also be included in reliability validation.
Touch operation must reflect gloves, cleaning, and the real workflow
Healthcare professionals may operate equipment while wearing latex, nitrile, or other medical gloves. In some situations, the screen may also be exposed to moisture, residual cleaning solution, or frequent wiping. Testing only with a bare, dry finger and an uninstalled module can lead to poor recognition, false touches, interrupted drags, or delayed response after production deployment.
Touch validation should reflect actual operating scenarios. At a minimum, it should cover glove material and thickness, operating gestures, button size, edge operation, moisture or post-cleaning conditions, and touch performance after repeated cleaning.
Module specifications must be verified at the system level, not only at the component level
Even when the display panel, touch sensor, and cover glass each meet their individual specifications, performance can still be affected after installation in the final device by mechanical tolerances, grounding, power noise, adjacent electronics, and environmental conditions.
For this reason, medical touch display selection should go beyond comparing individual component specifications. Confirm optical performance, touch operation, EMI risk, cleaning resistance, structural reliability, and production consistency from a system-level perspective. This is why an integrated TDM approach can reduce project variables for OEMs.
TDM: Converting Design Conditions into an Integrated, Production-Ready Solution
Once an OEM has defined the operating environment, user interaction, cleaning conditions, and system constraints, the next step is not simply selecting a display panel or touch panel. It is confirming whether all material layers and electronic components can operate reliably as one system.
A TDM (Touch Display Module) integrates the display panel, touch sensor, cover glass, optical bonding, and necessary mechanical design into one module architecture. This enables OEMs to confirm compatibility among optical, touch, mechanical, and electrical interfaces earlier in development.
Compared with integrating components supplied separately by multiple vendors, a TDM approach helps address tolerances, bonding, touch parameters, grounding, and signal interference earlier in the project, reducing later system adjustments and production variation.
How does a TDM create value for medical device OEMs?
- Reduced integration risk: Display, touch, cover glass, bonding, and relevant structural conditions are incorporated into one module design and validation plan, allowing earlier confirmation of compatibility among tolerances, optical performance, touch parameters, and electrical interfaces.
- Shorter development cycles: Integration and tuning work can move earlier in the process, allowing OEM engineering teams to focus on core system development and final-device validation.
- Better production consistency: A modular design and manufacturing process can reduce lot-to-lot variation and support yield and long-term reliability.
For OEMs, adopting a TDM is more than a technical upgrade. It is an integration strategy that reduces project risk and improves development efficiency.
Four Benefits of Optical Bonding: Improved Image Clarity, Touch Accuracy, and Structural Support
In a TDM, optical bonding directly affects how well the HMI can be seen, operated precisely, and supported over its service life.
Improved visibility: reducing reflections and glare
Conventional air-gap construction leaves an air layer between the display panel and cover glass. Differences in refractive index among air, glass, and the display can create internal reflections under strong light, reducing contrast and image clarity. Optical bonding fills this air gap with an optically clear adhesive to reduce internal reflections. For users who need to read information under surgical lights or complex ambient lighting, this can lessen the impact of ambient light on display contrast and improve readability.
Reduced perceived parallax for more intuitive precision tasks
An air gap can make the touch point appear offset from the displayed target when the screen is viewed from an angle. Optical bonding can reduce this perceived parallax, making precise tapping and drag operations more intuitive. Actual operating performance should still be confirmed based on viewing distance, user-interface design, and module construction.
Lower risk of air-gap-related condensation and fogging
Medical equipment may be moved between or used in environments with different temperatures and humidity levels. The air layer in an air-gap construction can make optical performance more susceptible to temperature changes and moisture. By filling the gap with optically clear adhesive, optical bonding can reduce air-gap-related reflections and the risk of fogging; reliability in high-humidity, thermal-cycling, or frequently moved environments must still be validated with the complete device sealing design and actual conditions.
Improved interlayer support
Optical bonding can improve support between module layers. Actual impact resistance still depends on the cover glass, bezel retention, material stack-up, and overall device structure, and should be determined by design-validation results.
| Evaluation Area | Optical Bonding | Air-Gap Construction |
|---|---|---|
| Visibility | Can reduce internal reflections and improve contrast under complex lighting; actual results depend on the structure and surface treatment. | The air gap can increase internal reflections, so visibility requires more evaluation under complex lighting. |
| Touch operation | Can reduce perceived parallax caused by an air gap, making precision tasks more intuitive. | May create more noticeable perceived parallax; evaluate according to viewing distance and UI design. |
| Environmental robustness | Can reduce air-gap-related reflections, fogging, and condensation risk; complete-device design validation is still required. | Optical performance may be more susceptible to temperature and humidity conditions. |
| Structural support | Can improve interlayer support; actual impact performance requires structural validation. | Structural characteristics depend on support design, retention method, and material stack-up. |
| Cost consideration | Initial manufacturing cost is typically higher; long-term value should be assessed together with reliability, maintenance, and downtime risk. | Initial purchase cost may be lower, but maintenance and failure risk should still be included in TCO. |
Keys to TDM Production: OCA/LOCA Process Selection and AG/AR Surface Treatments
After selecting a TDM and optical-bonding approach, OEM teams must still make appropriate decisions about technical details, structural design, and process capability to improve manufacturability and final quality.
OCA vs. LOCA: balancing process, appearance, and risk
- OCA (Optically Clear Adhesive): A pre-formed adhesive film used for bonding. It can help control bond-line thickness and uniformity and may support rework planning for certain constructions. It is more sensitive to bonding gaps, surface flatness, and structural tolerances; feasibility of the material and process should be assessed separately for large displays, curved surfaces, or more complex structures.
- LOCA (Liquid Optically Clear Adhesive): A liquid adhesive that fills the gap between the display panel and cover glass before curing by UV light or heat. It offers more flexibility for gap filling and some complex structures, but requires tighter control of dispense volume, cleanliness, curing, and overflow. Rework is typically more difficult after curing.
Guidance for OEMs: Do not select OCA or LOCA based on display size alone. Also evaluate the flatness of the display panel and cover glass, bonding gap, tolerance requirements, cosmetic standard, rework strategy, production yield, and the supplier's process capability. Base the final decision on prototype and production-validation results rather than a single size threshold.
Surface treatments: balancing visibility and cleaning resistance
- Anti-glare (AG): A fine surface texture, created by etching or coating, diffuses ambient light to reduce glare. Poor-quality AG treatment can reduce image sharpness, and coating abrasion resistance must withstand long-term chemical wiping.
- Anti-reflection (AR): Multilayer optical films reduce reflections while preserving image contrast and clarity. Chemical resistance is a key evaluation factor.
- Anti-fingerprint / anti-smudge (AF/AS): Hydrophobic and oleophobic surface treatments make fingerprints and contaminants less likely to adhere and improve day-to-day cleanability.
- Antimicrobial (AB): Where an antimicrobial surface is required, confirm the material type, test method, cleaning resistance, and target-market requirements for performance claims. An antimicrobial surface should not replace established cleaning, disinfection, or infection-control procedures.
Guidance for OEMs: Ask suppliers to propose a surface-treatment combination that fits the equipment's use case, and confirm that abrasion and chemical-resistance test conditions match the actual cleaning process.
System Integration: Preventing Touch Interference and Failures at the Source
The performance of a TDM also depends on how it is integrated into the complete device.
- EMI and grounding design: PCAP touch performance can be affected by power noise, grounding method, the display panel, metal structures, and nearby electronics, causing coordinate drift, false touches, or unstable operation. Confirm shielding and grounding design during module selection, then perform testing on the final device prototype.
- System synchronization: The touch controller's coordinate-reporting rate should be well matched to the system's display refresh rate and software processing capability to provide a smooth user experience.
- Complete system-integration testing: Before production, install the TDM in the final product prototype and simulate actual clinical use scenarios to confirm long-term stability.
Total Cost of Ownership (TCO): A Decision Beyond Initial Purchase Price
A display solution with a lower initial quotation can create higher hidden costs throughout the product life cycle:
- Higher maintenance and replacement cost: More frequent service and replacement due to luminance degradation, touch failures, or structural damage.
- Higher operational-disruption cost: HMI failures can take equipment out of service, reducing clinical efficiency and generating customer complaints.
- Higher quality-management cost: Additional engineering and quality resources required to manage an unstable supplier.
A high-quality, reliable TDM solution may cost more initially, but can reduce maintenance needs, downtime risk, and the cost of repeated integration changes. From a TCO perspective, solution value should be assessed together with product life, reliability, and the complete-device user experience.
Look Beyond Initial Cost: Choose a TDM Partner That Creates Long-Term Value
Selecting a display and touch interface for medical equipment is a system-level decision that affects product usability, reliability, and production efficiency.
By applying an integrated TDM approach and confirming optical bonding, surface treatment, cleaning resistance, glove touch, EMI, and whole-device reliability conditions early in the project, OEM teams can reduce uncertainty across component interfaces, shorten iteration time, and improve production consistency.
Frequently Asked Questions: Medical Equipment HMIs and Touch Display Modules
1. What should be confirmed first when selecting a touch display module for medical equipment?
Start with the device's intended use and actual operating conditions, including workflow, ambient light, glove use, cleaning and disinfection methods, expected service life, installation space, and system-level constraints such as EMI and grounding. These conditions directly affect the selection of the display, touch technology, bonding, and surface treatment.
2. How does optical bonding improve the usability and visibility of a medical equipment HMI?
Optical bonding can reduce internal reflections between the display panel and cover glass, improve contrast under complex lighting, and reduce perceived parallax caused by an air gap. It can also increase support between module layers. Actual clarity, impact resistance, and environmental reliability must still be confirmed according to the device structure and validation conditions.
3. What advantages does a TDM offer medical device OEMs?
A TDM integrates the display panel, touch sensor, cover glass, and optical bonding into a modular solution. This can reduce integration risk, shorten development time, and improve production quality consistency.
4. What is the difference between OCA and LOCA optical bonding, and how should an OEM choose?
OCA is a pre-formed optically clear adhesive film suited to designs that prioritize control of bond-line thickness and uniformity. LOCA is a liquid optically clear adhesive that provides more flexibility for gap filling and some structural conditions, but demands tighter process control. Evaluate structural tolerances, cosmetic standards, rework strategy, production yield, and supplier capability rather than deciding by display size alone.
5. Why can a high-quality TDM solution reduce total cost of ownership (TCO)?
Although the initial purchase cost of a high-quality TDM may be higher, it can reduce maintenance and replacement costs, lower downtime risk, and improve user experience and product life. Its value should therefore be evaluated across the full product life cycle.
